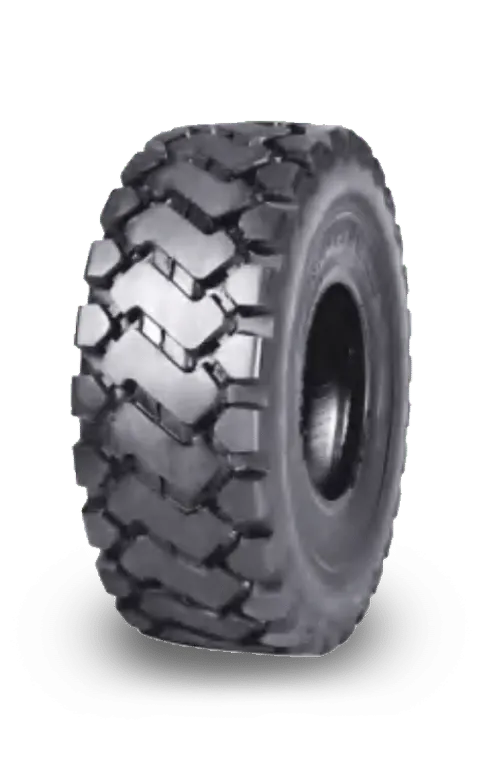

GP108C

PRODUCTS

INQUIRY CONTACT US

Size	PR	T.D.(mm)	S.R.	S.W.(mm)	O.D.(mm)	Max loading (kg)		pressure (kpa)		Type	Code
Size	PR	T.D.(mm)	S.R.	S.W.(mm)	O.D.(mm)	50km/h	10km/h	50km/h	10km/h	Type	Code
16.00-25	28	28.5	11.25/2.0	430	1490	6700	11500	575	750	TT/TL	GP108C E-3 L-3
	32					7300	12500	650	875
	16					7750	13600	725	975
15.5-25	12	24.5	12.00/1.3	395	1275	3250	5600	250	400
15.5-25	16	24.5	12.00/1.3	395	1275	3850	6750	325	525
17.5-25	16	26.5	14.00/1.5	445	1350	4250	7300	300	475
17.5-25	20	26.5	14.00/1.5	445	1350	5000	8250	400	575
20.5-25	20	30	17.00/2.0	520	1490	6000	9500	325	450
	24					6700	10300	400	525
	28					7500	11500	475	625
23.5-25	20	33	19.00/2.5	595	1615	7300	10900	300	375
	24					8000	12500	350	475
	28					8750	13600	400	550
26.5-25	28	35	22.00/3.0	675	1750	10000	15500	350	475
26.5-25	32	35	22.00/3.0	675	1750	11200	17000	425	550
29.5-25	28	38	25.00/3.5	750	1875	11500	17500	325	425
29.5-25	34	38	25.00/3.5	750	1875	12500	19000	375	500
